Model No. |
Frequency (GHz) |
Isolation dB (Min) |
Insertion loss dB (Max) |
VSWR (Max) |
Operating Temp. (°C) |

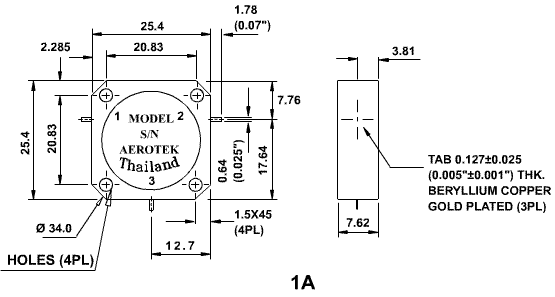

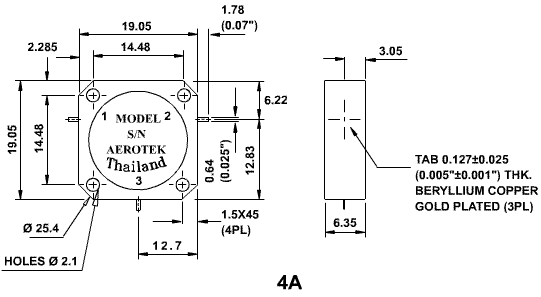

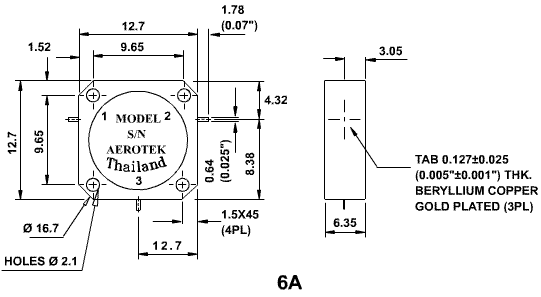

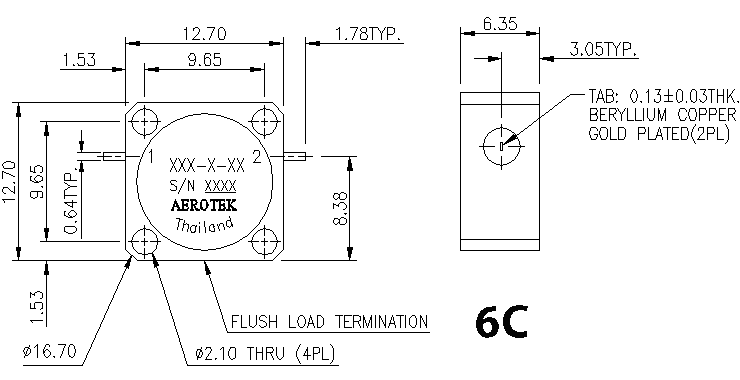

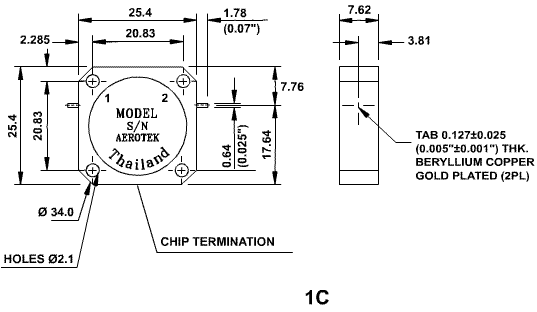

Outline fig. |
Weight (grams) |
||||
Circulator |
Isolator |
CIR |
ISO |
||||||||
D01-S-S |
D01-S-S1 |
1.2-1.4 |
20 |
0.5 |
1.25 |
-40 to +85 |
30 |
||||
D02-S-S |
D02-S-S1 |
1.43-1.53 |
18 |
0.5 |
1.3 |
-30 to +70 |
15 |
||||
D03-S-S |
D03-S-S1 |
1.4-1.6 |
20 |
0.5 |
1.25 |
-54 to +95 |
30 |
||||
E01-S-S |
E01-S-S1 |
2.0 - 2.3 |
20 |
0.4 |
1.25 |
-54 to +95 |
30 |
||||
F01-S-S |
F01-S-S1 |
3.7-4.2 |
20 |
0.5 |
1.25 |
-54 to +95 |
15 |
||||
G01-S-S |
G01-S-S1 |
4.2-4.4 |
20 |
0.5 |
1.25 |
-54 to +95 |
8 |
||||
G02-S-S |
G02-S-S1 |
4.4-5.0 |
20 |
0.5 |
1.25 |
-54 to +95 |
8 |
||||
G03-S-S |
G03-S-S1 |
5.0-6.0 |
20 |
0.5 |
1.25 |
-54 to +95 |
8 |
||||
H01-S-S |
H01-S-S1 |
5.5-6.0 |
20 |
0.5 |
1.25 |
-54 to +95 |
8 |
||||
H02-S-S |
H02-S-S1 |
6.4-7.8 |
20 |
0.5 |
1.25 |
-54 to +95 |
8 |
||||
H03-S-S |
H03-S-S1 |
7.0-8.5 |
20 |
0.4 |
1.25 |
-54 to +95 |
8 |
||||
I06-S-S |
I06-S-S1 |
9.0-10.0 |
20 |
0.5 |
1.25 |
-54 to +95 |
8 |
||||
J01-S-S |
J01-S-S1 |
10.7-11.7 |
20 |
0.6 |
1.25 |
-54 to +95 |
8 |
||||
Note:
* Power rating listed on this table is for circulators only.
* Standard terminations for isolator are rated at 1 watt cw.
* Rugged steel housing provides excellent magnetic shielding.
* Test fixtures for verifying preformances are available upon request.
