DROP-IN

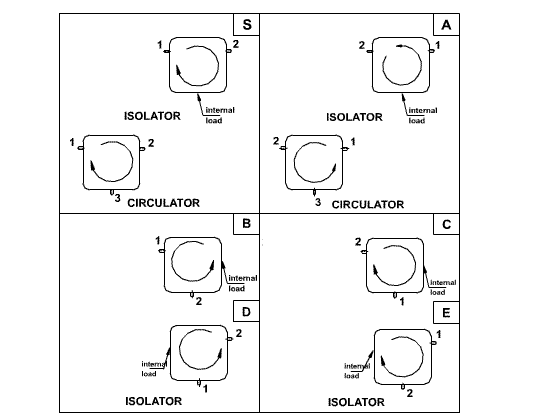

MODEL NUMBER DESCRIPTION

CLOCKWISE

ANTI CLOCKWISE
MODEL : X XX -X- X X



Band (GHz)



Frequency range



Option number



Configulation



Termination

C
0.5
 - 1.0
D
1.0
 - 2.0
E
2.0
 - 3.0
F
3.0
 - 4.0
G
4.0
 - 6.0
H
6.0
 - 8.0
I
8.0
 - 10.0
J
10.0
 - 13.0
K
13.0
 - 18.0
L
18.0
 - 26.5
M
26.5
 - 40.0



SPECIFY FREQUENCY AND BANDWIDTH ALSO SIZE, AND OTHER SPECIFICATIONS

INSERT NUMBER TO SPECIFY
NON-STANDARD SPECIFICATIONS

S for STANDARD

(SEE BELOW)
S for STANDARD CLOCKWISE
A for STANDARD ANTI- CLOCKWISE
B,C,D,E SEE BELOW

SPECIFY POWER RATING OF LOAD

1 for 1W
5 for 5W
10 for 10W
