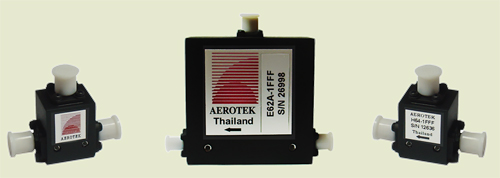

Standard octave band Coaxials


Model
Freq. (GHz)
Isolation dB (min)
Ins. Loss dB (max)
VSWR (max)
Operating temp. (?C)
Circulator Power rating
Dimension
Weight (g)
Circulator
Isolator
Peak
(W)
Avg.
(W)
W x L x T (mm.)
C64-1FFF
C64-1L1FF
0.8-1.6
17
0.7
1.35
10 to +40
100
50
76 x 76 x 26
570
C60-1FFF
C60-1L1FF
0.9-1.7
17
0.6
1.35
10 to +40
100
50
70 x 70 x 22
380
D60-1FFF
D60-1L1FF
1.0-2.0
17
0.6
1.35
10 to +40
100
50
60 x 60 x 22
260
D61-1FFF
D61-1L1FF
1.12-2.24
17
0.5
1.35
0 to +55
100
50
60 x 60 x 22
260
D62-1FFF
D62-1L1FF
1.3-2.6
17
0.5
1.35
10 to +55
100
50
60 x 60 x 22
260
E60-1FFF
E60-1L1FF
1.5-3.0
17
0.6
1.35
0 to +55
100
50
60 x 60 x 22
260
F60-1FFF
F60-1L1FF
1.9-3.6
17
0.5
1.35
0 to +70
250
50
50 x 50 x 21
190
F61-1FFF
F61-1L1FF
2.0-4.0
17
0.5
1.35
-20 to +70
250
50
41 x 42 x 20
120
F63-1FFF
F63-1L1FF
2.6-5.2
18
0.6
1.35
0 to +55
250
25
32 x 34 x 19
80
G60-1FFF
G60-1L1FF
2.7-5.4
17
0.5
1.35
0 to +55
250
25
32 x 34 x 19
80
G61-1FFF
G61-1L1FF
3.0-6.0
17
0.6
1.35
-30 to +70
250
25
32 x 34 x 19
80
G62-1FFF
G62-1L1FF
3.2-6.5
17
0.5
1.35
-30 to +70
250
25
32 x 34 x 19
80
H60-1FFF
H60-1L1FF
4.0-8.0
18
0.5
1.35
-30 to +70
250
25
25 x 29 x 18
50
H61-1FFF
H61-1L1FF
4.5-9.0
17
0.5
1.35
0 to +55
250
25
25 x 29 x 18
50
H62-1FFF
H62-1L1FF
4.8-9.6
17
0.6
1.35
-30 to +70
250
25
25 x 29 x 18
50
H63-1FFF
H63-1L1FF
5.0-10.0
17
0.6
1.35
-30 to +70
250
25
25 x 29 x 18
50
H64-1FFF
H64-1L1FF
5.2-10.4
17
0.6
1.35
-30 to +70
250
25
19 x 24 x 17
45
I70-1FFF
I70 -1L1FF
6.0-12.0
17
0.6
1.35
-30 to +70
250
25
19 x 22 x 13
45
I77-1FFF
I77-1L1FF
6.5-13.0
17
0.7
1.35
-54 to +85
250
25
19 x 22 x 13
45
J60-1FFF
J60-1L1FF
8.0-16.0
17
0.65
1.35
-40 to +85
250
25
16 x 21 x 17
26
K60-1FFF
K60-1L1FF
9.0-18.0
17
0.7
1.35
-54 to +85
250
25
16 x 21 x 17
26
